____**EASTERN MOTORCYCLE PARTS**____

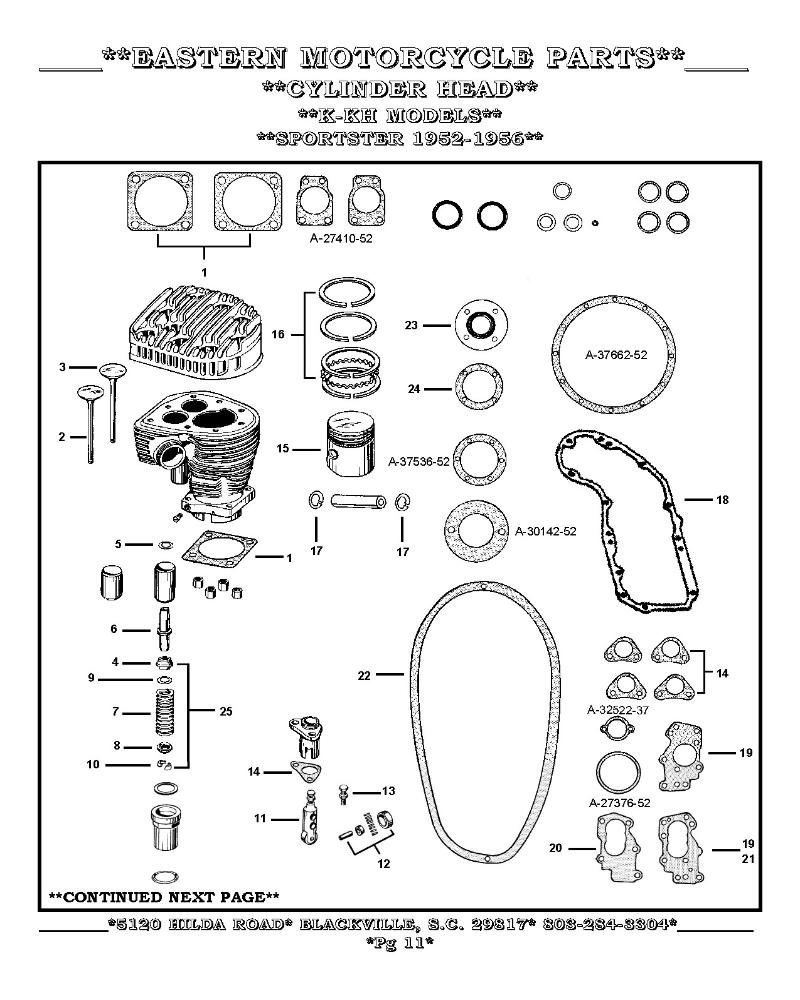

**CYLINDER HEAD**
**K-KH MODELS"**
**SPORTSTER 1952-1956**

____*5120 HILDA ROAD* BLACKVILLE,SC 29817 *803-284-3304*____ *Pg 11*

**PAGE 11**

____**EASTERN MOTORCYCLE PARTS**____
**CYLINDER HEAD**
**K-KH MODELS**
**SPORTSTER 1952-1956**

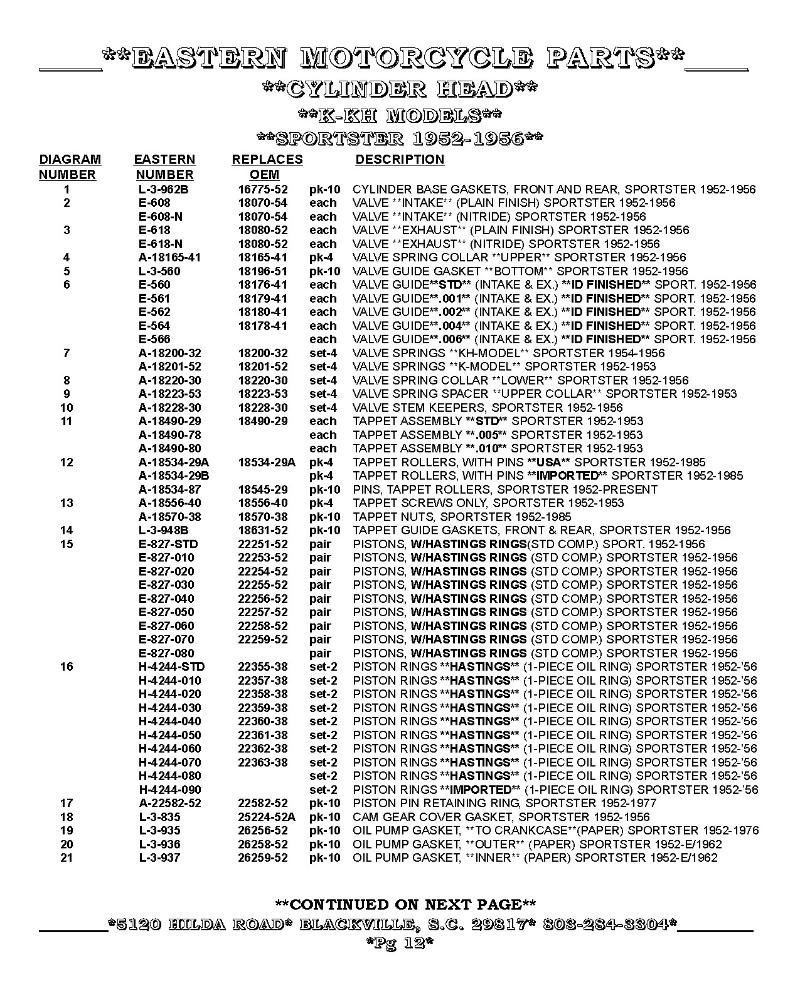

EASTERN OEM NUMBER NUMBER DESCRIPTION 1 L-3-962B 16775-52 pk-10 CYLINDER BASE GASKETS, FRONT AND REAR, SPORTSTER 1952-1956 2 E-608 18070-54 each VALVE **INTAKE** (PLAIN FINISH) SPORTSTER 1952-1956 E-608-N 18070-54 each VALVE **INTAKE** (NITRIDE) SPORTSTER 1952-1956 3 E-618 18080-52 each VALVE **EXHAUST** (PLAIN FINISH) SPORTSTER 1952-1956 E-618-N 18080-52 each VALVE **EXHAUST** (NITRIDE) SPORTSTER 1952-1956 4 A-18165-41 18165-41 pk-4 VALVE SPRING COLLAR **UPPER** SPORTSTER 1952-1956 5 L-3-560 18196-51 pk-10 VALVE GUIDE GASKET **BOTTOM** SPORTSTER 1952-1956 6 E-560 18176-41 each VALVE GUIDE**STD** (INTAKE & EX.) **ID NOT FINISHED** SP. 1952-1956 E-561 18179-41 each VALVE GUIDE**.001** (INTAKE & EX.) **ID NOT FINISHED** SP. 1952-1956 E-562 18180-41 each VALVE GUIDE**.002** (INTAKE & EX.) **ID NOT FINISHED** SP. 1952-1956 E-564 18178-41 each VALVE GUIDE**.004** (INTAKE & EX.) **ID NOT FINISHED** SP. 1952-1956 E-566 each VALVE GUIDE**.006** (INTAKE & EX.) **ID NOT FINISHED** SP. 1952-1956 7 A-18200-32 18200-32 set-4 VALVE SPRINGS **KH-MODEL** SPORTSTER 1954-1956 A-18201-52 18201-52 set-4 VALVE SPRINGS **K-MODEL** SPORTSTER 1952-1953 8 A-18220-30 18220-30 set-4 VALVE SPRING COLLAR **LOWER** SPORTSTER 1952-1956 9 A-18223-53 18223-53 set-4 VALVE SPRING SPACER **UPPER COLLAR** SPORTSTER 1952-1953 10 A-18228-30 18228-30 set-4 VALVE STEM KEEPERS, SPORTSTER 1952-1956 11 A-18490-29 18490-29 each TAPPET ASSEMBLY **STD** SPORTSTER 1952-1953 A-18490-78 each TAPPET ASSEMBLY **.005** SPORTSTER 1952-1953 A-18490-80 each TAPPET ASSEMBLY **.010** SPORTSTER 1952-1953 12 A-18534-29A 18534-29A pk-4 TAPPET ROLLERS, WITH PINS **USA** SPORTSTER 1952-1985 A-18534-29B pk-4 TAPPET ROLLERS, WITH PINS **IMPORTED** SPORTSTER 1952-1985 A-18534-87 18545-29 pk-10 PINS, TAPPET ROLLERS, SPORTSTER 1952-PRESENT 13 A-18556-40 18556-40 pk-4 TAPPET SCREWS ONLY, SPORTSTER 1952-1953 A-18570-38 18570-38 pk-10 TAPPET NUTS, SPORTSTER 1952-1985 14 L-3-948B 18631-52 pk-10 TAPPET GUIDE GASKETS, FRONT & REAR, SPORTSTER 1952-1956 15 E-827-STD 22251-52 pair PISTONS, WITH IMPORTED RINGS (STD COMP.) SPORT. 1952-1956 E-827-010 22253-52 pair PISTONS, W/HASTINGS RINGS (STD COMP.) SPORTSTER 1952-1956 E-827-020 22254-52 pair PISTONS, W/HASTINGS RINGS (STD COMP.) SPORTSTER 1952-1956 E-827-030 22255-52 pair PISTONS, W/HASTINGS RINGS (STD COMP.) SPORTSTER 1952-1956 E-827-040 22256-52 pair PISTONS, W/HASTINGS RINGS (STD COMP.) SPORTSTER 1952-1956 E-827-050 22257-52 pair PISTONS, W/HASTINGS RINGS (STD COMP.) SPORTSTER 1952-1956 E-827-060 22258-52 pair PISTONS, W/HASTINGS RINGS (STD COMP.) SPORTSTER 1952-1956 E-827-070 22259-52 pair PISTONS, W/HASTINGS RINGS (STD COMP.) SPORTSTER 1952-1956 E-827-080 pair PISTONS, W/HASTINGS RINGS (STD COMP.) SPORTSTER 1952-1956 16 H-4244-STD 22355-38 set-2 PISTON RINGS **IMPORTED** (1-PIECE OIL RING) SPORTSTER 1952-1956 H-4244-010 22357-38 set-2 PISTON RINGS **HASTINGS** (1-PIECE OIL RING) SPORTSTER 1952-1956 H-4244-020 22358-38 set-2 PISTON RINGS **HASTINGS** (1-PIECE OIL RING) SPORTSTER 1952-1956 H-4244-030 22359-38 set-2 PISTON RINGS **HASTINGS** (1-PIECE OIL RING) SPORTSTER 1952-1956 H-4244-040 22360-38 set-2 PISTON RINGS **HASTINGS** (1-PIECE OIL RING) SPORTSTER 1952-1956 H-4244-050 22361-38 set-2 PISTON RINGS **HASTINGS** (1-PIECE OIL RING) SPORTSTER 1952-1956 H-4244-060 22362-38 set-2 PISTON RINGS **HASTINGS** (1-PIECE OIL RING) SPORTSTER 1952-1956 H-4244-070 22363-38 set-2 PISTON RINGS **HASTINGS** (1-PIECE OIL RING) SPORTSTER 1952-1956 H-4244-080 set-2 PISTON RINGS **HASTINGS** (1-PIECE OIL RING) SPORTSTER 1952-1956 H-4244-090 set-2 PISTON RINGS **IMPORTED** (1-PIECE OIL RING) SPORTSTER 1952-1956 17 A-22582-52 22582-52 pk-10 PISTON PIN RETAINING RING, SPORTSTER 1952-1977 18 L-3-835 25224-52A pk-10 CAM GEAR COVER GASKET, SPORTSTER 1952-1956 19 L-3-935 26256-52 pk-10 OIL PUMP GASKET, **TO CRANKCASE**(PAPER) SPORTSTER 1952-1976 20 L-3-936 26258-52 pk-10 OIL PUMP GASKET, **OUTER** (PAPER) SPORTSTER 1952-E/1962 21 L-3-937 26259-52 pk-10 OIL PUMP GASKET, **INNER** (PAPER) SPORTSTER 1952-E/1962 ____*5120 HILDA ROAD* BLACKVILLE,SC 29817 *803-284-3304*____ *Pg 12*

**PAGE 12**

____**EASTERN MOTORCYCLE PARTS**____
**CYLINDER HEAD**
**K-KH MODELS**
**SPORTSTER 1952-1956**

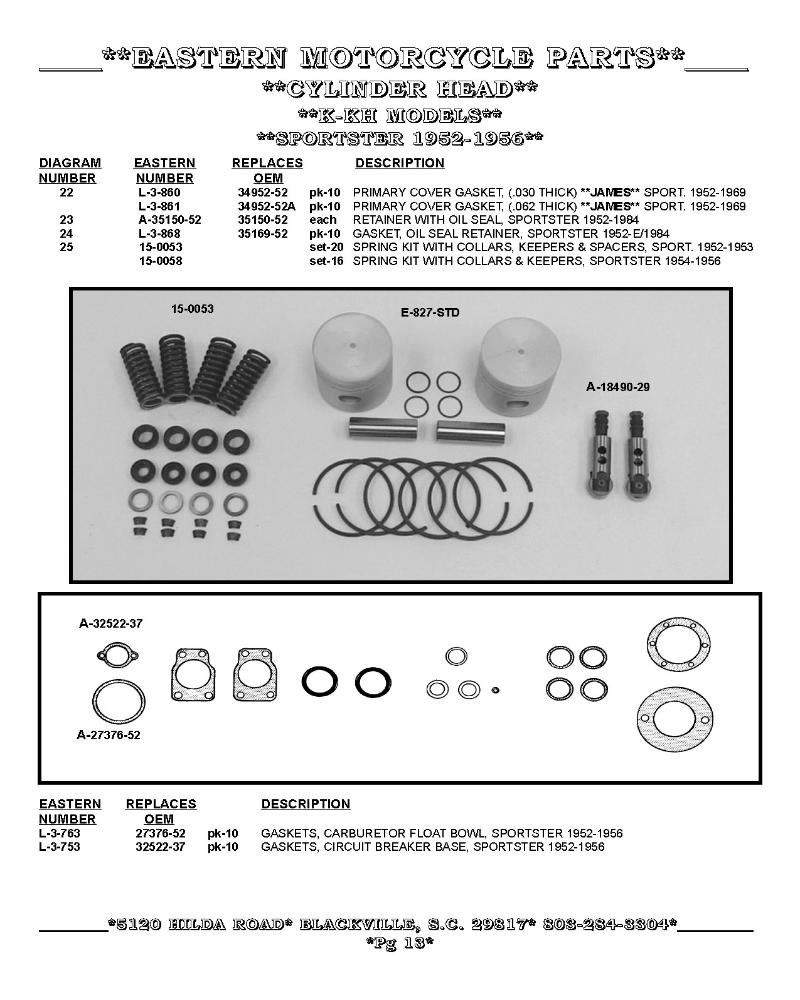

        EASTERN      OEM
        NUMBER      NUMBER           DESCRIPTION
    22	L-3-860       34952-52   pk-10   PRIMARY COVER GASKET, (.030 THICK) **JAMES** SPORT. 1952-1969
	L-3-861       34952-52A  pk-10   PRIMARY COVER GASKET, (.062 THICK) **JAMES** SPORT. 1952-1969
    23	A-35150-52    35150-52   each    RETAINER WITH OIL SEAL, SPORTSTER 1952-1984
    24	L-3-868       35169-52   pk-10   GASKET, OIL SEAL RETAINER, SPORTSTER 1952-E/1984
    25	15-0053                  set-20  SPRING KIT WITH COLLARS, KEEPERS & SPACERS, SPORT. 1952-1953
	15-0058                  set-16  SPRING KIT WITH COLLARS & KEEPERS, SPORTSTER 1954-1956









































       EASTERN      OEM
       NUMBER      NUMBER           DESCRIPTION
        L-3-763       27376-52   pk-10   GASKETS, CARBURETOR FLOAT BOWL, SPORTSTER 1952-1956
        L-3-753       32522-37   pk-10   GASKETS, CIRCUIT BREAKER BASE, SPORTSTER 1952-1956




____*5120 HILDA ROAD*  BLACKVILLE,SC 29817  *803-284-3304*____
*Pg 13*
