____**EASTERN MOTORCYCLE PARTS**____

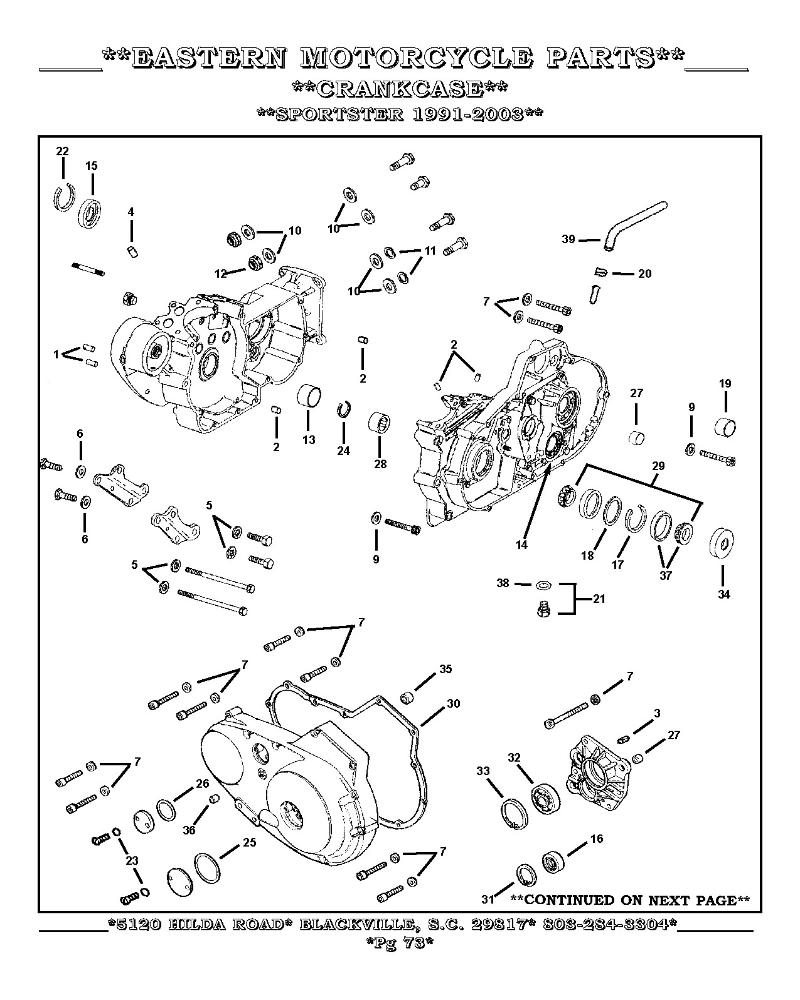

**CRANKCASE**
**SPORTSTER 1991-2003**




























































____*5120 HILDA ROAD*  BLACKVILLE,SC 29817  *803-284-3304*____
*Pg 72*
**PAGE 72**

____**EASTERN MOTORCYCLE PARTS**____
**CRANKCASE**
**SPORTSTER 1991-2003**

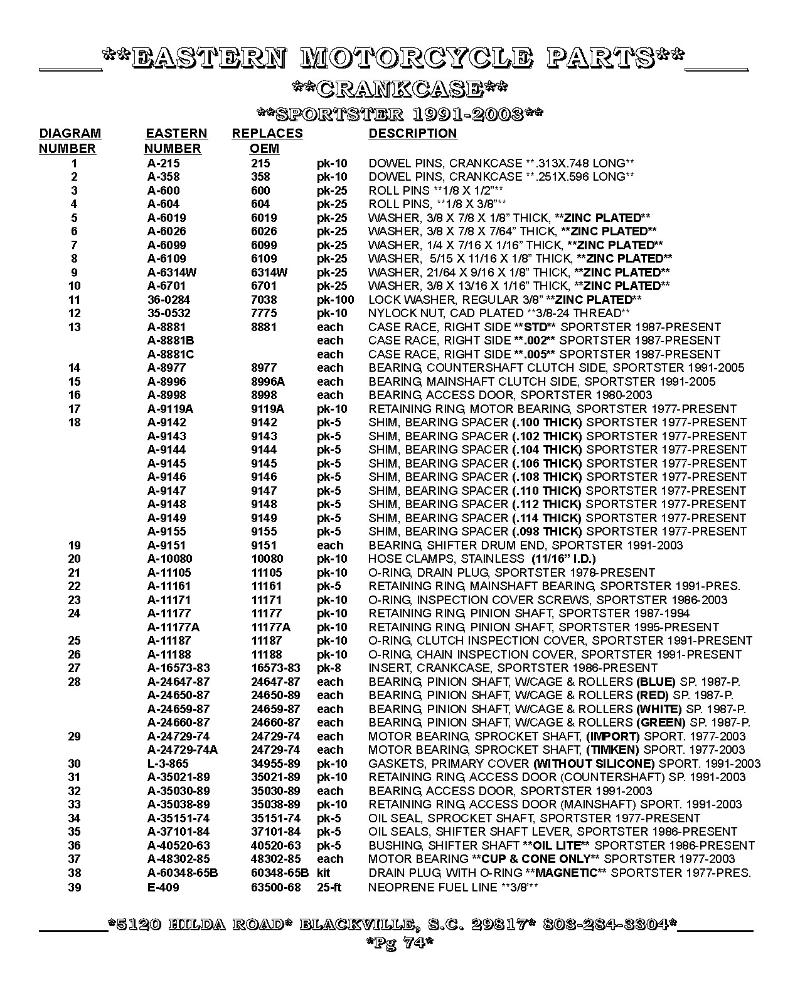

        EASTERN      OEM
        NUMBER      NUMBER           DESCRIPTION
    1    A-215         215        pk-10   DOWEL PINS, CRANKCASE **.313X.748 LONG**
    2    A-358         358        pk-10   DOWEL PINS, CRANKCASE **.251X.596 LONG**
    3    A-600         600        pk-25   ROLL PINS **1/8 X 1/2”**
    4    A-604         604        pk-25   ROLL PINS, **1/8 X 3/8”**
    5    A-6019        6019       pk-25   WASHER, 3/8 X 7/8 X 1/8” THICK, **ZINC PLATED**
    6    A-6026        6026       pk-25   WASHER, 3/8 X 7/8 X 7/64” THICK, **ZINC PLATED**
    7    A-6099        6099       pk-25   WASHER, 1/4 X 7/16 X 1/16” THICK, **ZINC PLATED**
    8    A-6109        6109       pk-25   WASHER,  5/15 X 11/16 X 1/8” THICK, **ZINC PLATED**
    9    A-6314W       6314W      pk-25   WASHER, 21/64 X 9/16 X 1/8” THICK, **ZINC PLATED**
    10   A-6701        6701       pk-25   WASHER, 3/8 X 13/16 X 1/16” THICK, **ZINC PLATED**
    11   36-0284       7038       pk-100  LOCK WASHER, REGULAR 3/8” **ZINC PLATED**
    12   35-0532       7775       pk-10   NYLOCK NUT, CAD PLATED **3/8-24 THREAD**
    13   A-8881        8881       each    CASE RACE, RIGHT SIDE **STD** SPORTSTER 1987-PRESENT
         A-8881B                  each    CASE RACE, RIGHT SIDE **.002** SPORTSTER 1987-PRESENT
         A-8881C                  each    CASE RACE, RIGHT SIDE **.005** SPORTSTER 1987-PRESENT
    14   A-8977        8977       each    BEARING, COUNTERSHAFT CLUTCH SIDE, SPORTSTER 1991-2005
    15   A-8996        8996A      each    BEARING, MAINSHAFT CLUTCH SIDE, SPORTSTER 1991-2005
    16   A-8998        8998       each    BEARING, ACCESS DOOR, SPORTSTER 1980-2003
    17   A-9119A       9119A      pk-10   RETAINING RING, MOTOR BEARING, SPORTSTER 1977-PRESENT
    18   A-9142        9142       pk-5    SHIM, BEARING SPACER (.100 THICK) SPORTSTER 1977-PRESENT
         A-9143        9143       pk-5    SHIM, BEARING SPACER (.102 THICK) SPORTSTER 1977-PRESENT
         A-9144        9144       pk-5    SHIM, BEARING SPACER (.104 THICK) SPORTSTER 1977-PRESENT
         A-9145        9145       pk-5    SHIM, BEARING SPACER (.106 THICK) SPORTSTER 1977-PRESENT
         A-9146        9146       pk-5    SHIM, BEARING SPACER (.108 THICK) SPORTSTER 1977-PRESENT
         A-9147        9147       pk-5    SHIM, BEARING SPACER (.110 THICK) SPORTSTER 1977-PRESENT
         A-9148        9148       pk-5    SHIM, BEARING SPACER (.112 THICK) SPORTSTER 1977-PRESENT
         A-9149        9149       pk-5    SHIM, BEARING SPACER (.114 THICK) SPORTSTER 1977-PRESENT
         A-9155        9155       pk-5    SHIM, BEARING SPACER (.098 THICK) SPORTSTER 1977-PRESENT
    19   A-9151        9151       each    BEARING, SHIFTER DRUM END, SPORTSTER 1991-2003
    20   A-10080       10080      pk-10   HOSE CLAMPS, STAINLESS  (11/16” I.D.)
    21   A-11105       11105      pk-10   O-RING, DRAIN PLUG, SPORTSTER 1978-PRESENT
    22   A-11161       11161      pk-5    RETAINING RING, MAINSHAFT BEARING, SPORTSTER 1991-PRES.
    23   A-11171       11171      pk-10   O-RING, INSPECTION COVER SCREWS, SPORTSTER 1986-2003
    24   A-11177       11177      pk-10   RETAINING RING, PINION SHAFT, SPORTSTER 1987-1994
         A-11177A      11177A     pk-10   RETAINING RING, PINION SHAFT, SPORTSTER 1995-PRESENT
    25   A-11187       11187      pk-10   O-RING, CLUTCH INSPECTION COVER, SPORTSTER 1991-PRESENT
    26   A-11188       11188      pk-10   O-RING, CHAIN INSPECTION COVER, SPORTSTER 1991-PRESENT
    27   A-16573-83    16573-83   pk-8    INSERT, CRANKCASE, SPORTSTER 1986-PRESENT
    28   A-24647-87    24647-87   each    BEARING, PINION SHAFT, W/CAGE & ROLLERS (BLUE) SP. 1987-P.
         A-24650-87    24650-89   each    BEARING, PINION SHAFT, W/CAGE & ROLLERS (RED) SP. 1987-P.
         A-24659-87    24659-87   each    BEARING, PINION SHAFT, W/CAGE & ROLLERS (WHITE) SP. 1987-P.
         A-24660-87    24660-87   each    BEARING, PINION SHAFT, W/CAGE & ROLLERS (GREEN) SP. 1987-P.
    29   A-24729-74    24729-74   each    MOTOR BEARING, SPROCKET SHAFT, (IMPORT) SPORT. 1977-2003
         A-24729-74A   24729-74   each    MOTOR BEARING, SPROCKET SHAFT, (TIMKEN) SPORT. 1977-2003
    30   L-3-865       34955-89   pk-10   GASKETS, PRIMARY COVER (WITHOUT SILICONE) SPORT. 1991-2003
    31   A-35021-89    35021-89   pk-10   RETAINING RING, ACCESS DOOR (COUNTERSHAFT) SP. 1991-2003
    32   A-35030-89    35030-89   each    BEARING, ACCESS DOOR, SPORTSTER 1991-2003
    33   A-35038-89    35038-89   pk-10   RETAINING RING, ACCESS DOOR (MAINSHAFT) SPORT. 1991-2003
    34   A-35151-74    35151-74   pk-5    OIL SEAL, SPROCKET SHAFT, SPORTSTER 1977-PRESENT
    35   A-37101-84    37101-84   pk-5    OIL SEALS, SHIFTER SHAFT LEVER, SPORTSTER 1986-PRESENT
    36   A-40520-63    40520-63   pk-5    BUSHING, SHIFTER SHAFT **OIL LITE** SPORTSTER 1986-PRESENT
    37   A-48302-85    48302-85   each    MOTOR BEARING **CUP & CONE ONLY** SPORTSTER 1977-2003
    38   A-60348-65B   60348-65B  kit     DRAIN PLUG, WITH O-RING **MAGNETIC** SPORTSTER 1977-PRES.
    39   E-409         63500-68   25-ft   NEOPRENE FUEL LINE **3/8"**



____*5120 HILDA ROAD*  BLACKVILLE,SC 29817  *803-284-3304*____
*Pg 73*
**PAGE 73**
